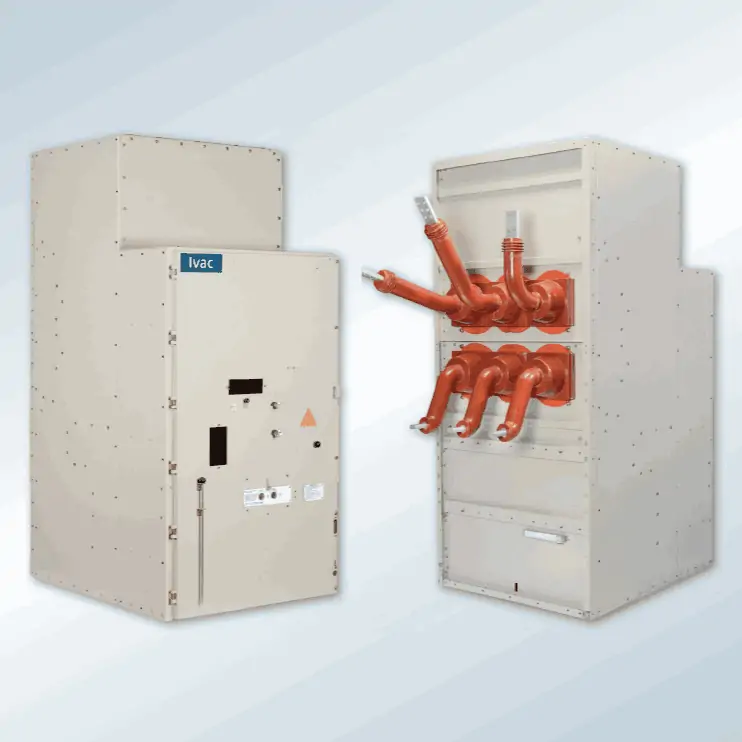

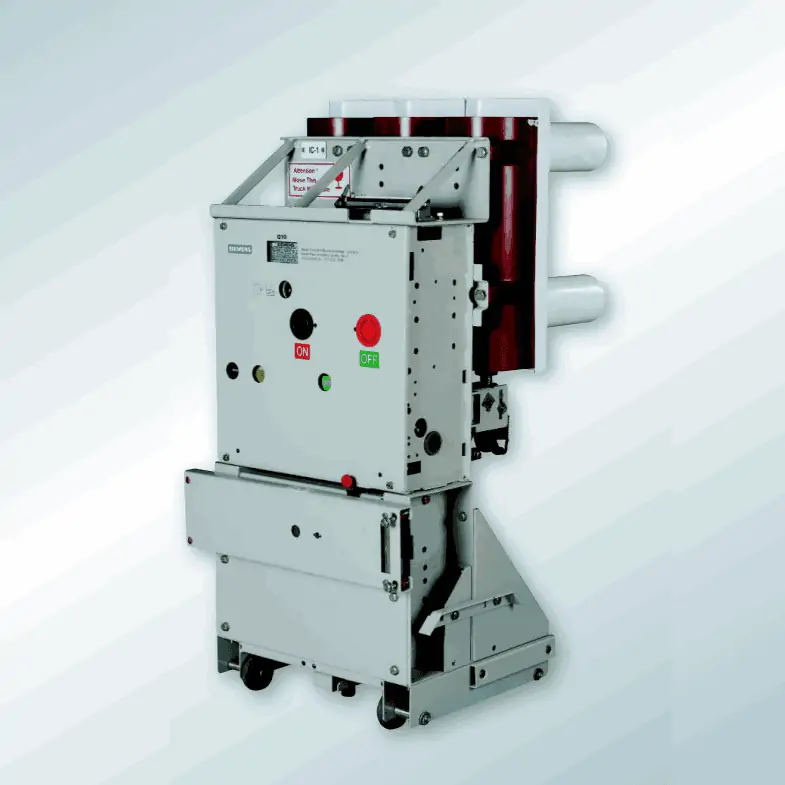

22kV & 33KV Vacuum Circuit Breaker

22kV & 33KV Vacuum Circuit Breaker

Salient features :

  • No separate maintenance trolley required.
  • lSafe and easy truck movement behind closed cubicle door.
  • Separately padlockable shutter for bus and cable side fixed contacts.
  • Automatic dropping ramp for facilitating truck removal.

Specification

Parameter Value
Rated voltage (frequency 50Hz) 12 kV
Rated current of feeders 1250 A
Rated current of the busbar 2000 A
Rated power frequency withstand voltage (rms) 60 sec. 28 kV
Rated lighting impulse withstand voltage (peak) 1.2/50 microsec. 75 kV
Rated short circuit Breaking current (rms) 26.3 kA
Rated short time current (rms) withstand (3 sec.) 26.3 kA
Rated short Circuit Making current (peak) 66 kA
